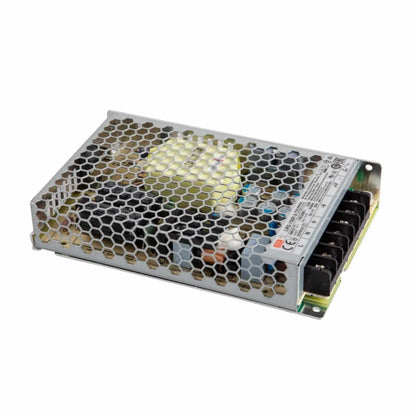

Meanwell SMPS 5V 22A LRS-150F-5

Meanwell SMPS 5V 22A LRS-150F-5

Regular price Rs. 1,573.00
Regular price Sale price Rs. 1,573.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Affordable Price
  • Recycle
  • Free Delivery

Product Description:

The LRS-150F-5 by Meanwell is a highly reliable and efficient single-output switching power supply designed for a wide range of applications. This compact and robust power supply unit delivers a stable 5V DC output with a maximum current of 22A, making it ideal for powering various electronic devices and systems.

Key Features:

  • Output Voltage: 5V DC
  • Output Current: 22A
  • Output Power: 110W
  • Input Voltage Range: 85-264V AC (universal input)
  • Input Frequency Range: 47-63Hz
  • Efficiency: Up to 87.5%
  • Operating Temperature: -30°C to +70°C (with derating)
  • Cooling Method: Convection cooling (no fan required)
  • Protections: Overload, Over Voltage, Short Circuit

Safety Standards: UL 62368-1, TUV EN 62368-1, EAC TP TC 004, FCC Part 15 Subpart B Class B

  • EMC Standards: EN 55032, EN 61000-3-2, EN 61000-3-3
  • MTBF: >300,000 hours at full load, 25°C ambient temperature
  • Dimensions: 199mm x 98mm x 38mm (L x W x H)
  • Weight: 0.55kg

Applications:

  • Industrial automation
  • Telecommunications
  • LED lighting
  • Security systems
  • Home appliances
  • Office equipment
  • Medical devices
  • Any application requiring a stable 5V DC power supply

Package Includes:

  • 1 x LRS-150F-5 Meanwell SMPS 5V 22A Power Supply Unit
  • User manual

Warranty:

  • 3-year limited warranty

Why Choose LRS-150F-5 Meanwell SMPS?

  • Reliability: Built with high-quality components to ensure long-term reliability and performance.
  • Efficiency: High efficiency rating reduces energy consumption and heat generation.
  • Compact Design: Space-saving design suitable for various installation environments.
  • Safety: Comprehensive protection features ensure safe operation under various conditions.
  • Global Compliance: Meets international safety and EMC standards, making it suitable for global use.

Technical Specifications:

Parameter Value
Output Voltage 5V DC
Output Current 22A
Output Power 110W
Input Voltage Range 85-264V AC
Input Frequency Range 47-63Hz
Efficiency Up to 87.5%
Operating Temperature -30°C to +70°C (with derating)
Cooling Method Convection cooling
Protections Overload, Over Voltage, Short Circuit
Safety Standards UL 62368-1, TUV EN 62368-1, EAC TP TC 004, FCC Part 15 Subpart B Class B
EMC Standards EN 55032, EN 61000-3-2, EN 61000-3-3
MTBF >300,000 hours
Dimensions 199mm x 98mm x 38mm
Weight 0.55kg
