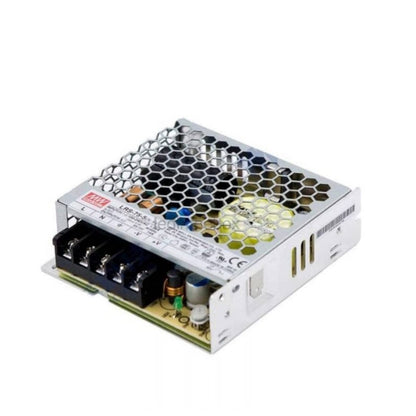

LRS-75-5 MEAN WELL 5V 14A Swiched Mode Power Supply

LRS-75-5 MEAN WELL 5V 14A Swiched Mode Power Supply

Rs. 971.30
Rs. 1,083.20 Rs. 971.30
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Affordable Price
  • Recycle
  • Free Delivery

Product Description:

The MEAN WELL LRS-75-5 is a high-efficiency, single-output, enclosed-type switching power supply designed for a wide range of applications. With an output of 5V DC and a maximum current of 14A, this power supply delivers a reliable 70W of power, making it ideal for industrial, commercial, and DIY projects. Its compact design, high reliability, and safety certifications make it a popular choice for powering LED displays, telecommunications equipment, and other low-voltage devices.

MEAN WELL
Product Category: Switching Power Supplies
Switching Supplies
5 VDC
1 Output
70 W
Enclosed
85 VAC to 264 VAC, 120 VDC to 373 VDC
14 A
Industrial
Chassis
99 mm (3.898 in)
97 mm (3.819 in)
30 mm (1.181 in)
LRS-75
Brand: MEAN WELL
Input Frequency: 47 Hz to 63 Hz
Product Type: Switching Power Supplies
Subcategory: Power Supplies
Unit Weight: 300 g



Key Features:

  • Output: 5V DC, 14A, 70W
  • Input Voltage Range: 85-264V AC (universal input)
  • High Efficiency: Up to 88%, reducing energy consumption and heat generation
  • Compact and Lightweight: Enclosed design for easy installation and space-saving
  • Protections: Overload, over-voltage, short-circuit, and over-temperature protections
  • Cooling Method: Built-in fanless design for silent operation
  • Operating Temperature Range: -30°C to +70°C (with derating above 50°C)
  • Safety Certifications: UL, cUL, TUV, CE, CB, FCC, and RoHS compliant
  • MTBF: High mean time between failures (MTBF) for long-lasting performance

Applications:

  • LED displays and lighting systems
  • Industrial automation and control systems
  • Telecommunications equipment
  • Security and surveillance systems
  • DIY electronics and hobbyist projects
  • Low-voltage devices requiring stable 5V power

Package Includes:

  • 1 x MEAN WELL LRS-75-5 Power Supply Unit
  • 1 x User Manual

Technical Specifications:

  • Model: LRS-75-5
  • Input Voltage: 85-264V AC, 120-370V DC
  • Output Voltage: 5V DC ±2%
  • Output Current: 14A (max)
  • Power Rating: 70W
  • Efficiency: Up to 88%
  • Ripple and Noise: 120mVp-p (max)
  • Dimensions (L x W x H): 127mm x 98mm x 38mm
  • Weight: 0.45kg

Why Choose MEAN WELL LRS-75-5?

  • Reliability: MEAN WELL is a globally recognized brand known for its high-quality power supplies.
  • Versatility: Suitable for a wide range of applications, from industrial to consumer electronics.
  • Safety: Built-in protections ensure safe operation under various conditions.
  • Energy Efficiency: High efficiency reduces operating costs and environmental impact.
